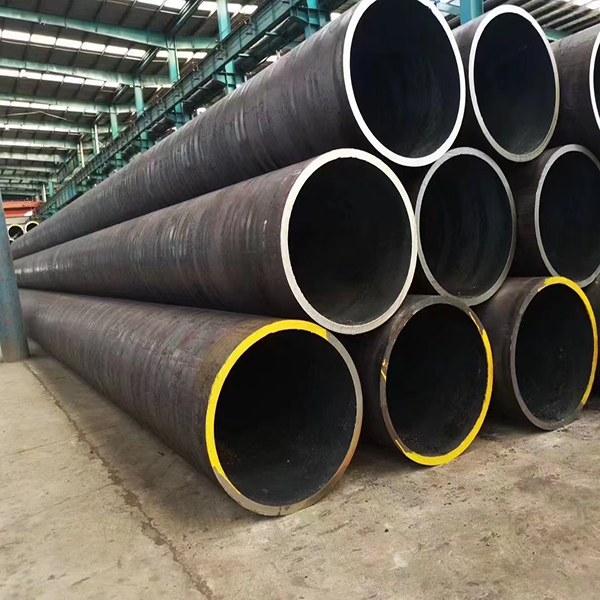

API 5L/ASTM A106 Gr.B Seamless Steel Pipe with Black Paint
Brief Intruction
Black hot rolled/cold drawn carbon seamless steel pipe / seamless steel tube
Standard: API 5L/ ASTM A106 ,ASTM A53 , ASTM A179, ASTM A210 ,ANSI B36.10, DIN 1629, JIS G3445 or As your additional requirements.
Aplication: It is used for conveying water, petroleum, gas and other common fluids
Techincal Parameters
| Type |
Seamless carbon steel line pipe
|
|
| Standard |
API 5L /ASTM A106 /DIN 1629/ Jis G3445
|
|
| Materials |
PSL1— Gr.B L245B/ L290X42/ L320X46/ L360X52/ L390X56/ L415X60/ L450X65/ L485X70
PSL2— L245/ L290/ L320/ L360/ L390/ L415/ L450/ L485 X42/X46/X52/X56/X60/X65/X70/X80
|
|
| Size | Outer Diameter |
Seamless:17-914mm 3/8"-36" ERW/ LSAW 457-1422mm 18"-56"
|
| Wall Thickness |
2-60mm SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160 XXS
|
|
| Length |
Single random length/Double random length5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request
|
|
| Ends |
Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
|
|
| Surface Treatment |
Bare,Painting black,varnished,galvanized,anti-corrosion 3PE PP/EP/FBE coating
|
|
| Technical Methods |
Hot-rolled/Cold-drawn/Hot-expanded
|
|
| Testing Methods |
Pressure test,Flaw detection,Eddy current testing, Hydrostatic testing
or Ultrasonic examination and also with chemical and physical property inspection
|
|
| Packaging |
Small pipes in bundles with strong steel strips,large pieces in loose; Covered with plastic wovenbags; Wooden cases;Suitable for lifting operation; Loaded in 20ft 40ft or 45ft container or in bulk;Also accrdin to customer's requests |
|
| Origin |
Shandong Prov.China
|
|
| Application |
Conveying oil gas and water and oil
|
|
| Certificates |
API ISO PED Lloyd's
|
|
| Third Party Inspection |
SGS BV MTC
|
|
| Trade Terms |
FOB CIF CFR
|
|
| Payment Terms |
FOB 30%T/T,70% before shipmentCIF 30% pre-payment and the balance to be paid upon B/L (copy)
or Irrevocable 100% L/C at sight
|
|
| MOQ |
10 tons
|
|
| Supply Capacity |
5000 T/M
|
|
| Delivery Time |
Usually within 30-45 days after receipt of advance payment
|
|
Standard size
Outer diameter(inch)
|
Wall thickness
|
Length(mm)
|
1/2" (21.3mm)
|
std(2.77mm), sch40(2.77mm), xs(3.73mm), sch80(3.73mm)
|
6000, 12000
|
3/4" (26.7mm)
|
std(2.87mm), sch40(2.87mm), xs(3.91mm),sch80(3.91mm)
|
6000, 12000
|
1" (33.4mm)
|
std(3.38mm), sch40(3.38mm), xs(4.55mm), sch80(4.55mm)
|
6000, 12000
|
1.1/4" (42.2mm)
|
std(3.56mm), sch40(3.56mm), xs(4.85mm), sch80(4.85mm)
|
6000, 12000
|
1.1/2" (48.3mm)
|
std(3.68mm), sch40(3.68mm), xs(5.08mm), sch80(5.08mm)
|
6000, 12000
|
2" (60.3mm)
|
std(3.91mm), sch40(3.91mm), xs(5.54mm), sch80(5.54mm)
|
6000, 12000
|
2. 1/2" (73mm)
|
std(5.16mm), sch40(5.16mm), xs(7.01mm), sch80(7.01mm)
|
6000, 12000
|
3" (88.9mm)
|
std(5.49mm), sch40(5.49mm), xs(7.62mm), sch80(7.62mm)
|
6000, 12000
|
3.1/2" (101.6mm)
|
std(5.74mm), sch40(5.74mm), xs(8.08mm), sch80(8.08mm)
|
6000, 12000
|
4"(114.3mm)
|
std(6.02mm), sch40(6.02mm), xs(8.56mm), sch80(8.56mm)
|
6000, 12000
|
5"(141.3mm)
|
std(6.55mm), sch40(6.55mm), xs(9.53mm), sch80(9.53mm)
|
6000, 12000
|
6"(168.3mm)
|
std(7.11mm), sch40(7.11mm), xs(10.97mm), sch80(10.97mm)
|
6000, 12000
|
8"(219.1mm)
|
std(8.18mm), sch40(8.18mm), xs(12.7mm), sch80(12.7mm)
|
6000, 12000
|
10 " (273mm)
|
std(9.27mm), sch40(9.27mm), xs(12.7mm), sch80(15.09mm)
|
6000, 12000
|
12" (323.9mm)
|
std(9.53mm), sch40(10.31mm), xs(12.7mm), sch80(17.48mm)
|
6000, 12000
|
14" (355.6mm)
|
std(9.53mm), sch40(11.13mm), xs(12.7mm), sch80(19.05mm)
|
6000, 12000
|
16" (406.4mm)
|
std(9.53mm), sch40(12.7mm), xs(12.7mm), sch80(21.44mm)
|
6000, 12000
|
18"(457.2mm)
|
std(9.53mm), sch40(14.27mm), xs(12.7mm), sch80(23.83mm)
|
6000, 12000
|
20 " (508mm)
|
std(9.53mm), sch40(15.09mm), xs(12.7mm), sch80(26.19mm)
|
6000, 12000
|
22"(558.8mm)
|
std(9.53mm), xs(12.7mm), sch80(28.58mm)
|
6000, 12000
|
24"(609.6mm)
|
std(9.53mm),sch40(17.48mm), xs(12.7mm), sch80(30.96mm)
|
6000, 12000
|
26"(660.4mm)
|
std(9.53mm), xs(12.7mm)
|
6000, 12000
|
28"(711.2mm)
|
std(9.53mm), xs(12.7mm)
|
6000, 12000
|
30" (762mm)
|
std(9.53mm), xs(12.7mm)
|
6000, 12000
|
